SafeSea E100/E100G

Home

/

SafeSea E100/E100G

SafeSea E100/E100G

**NOT FOR SALE IN U.S.A.

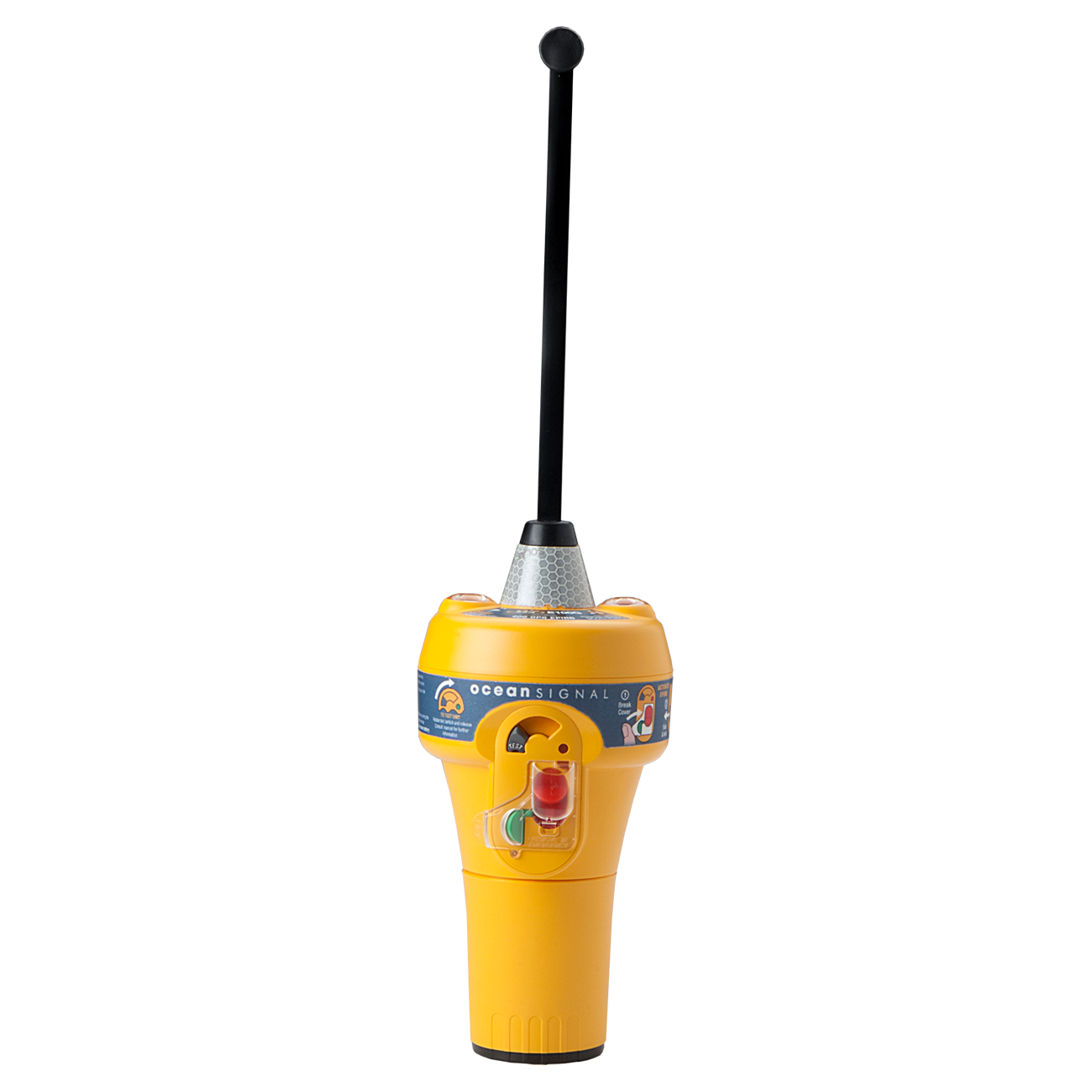

The SafeSea E100 & E100G EPIRBs have been designed and are engineered to meet the needs of all commercial, fishing, and offshore recreational vessels



  • Choice of GPS and non-GPS models
    • E100G EPIRB incorporates a state of the art 50 channel GPS receiver for fast and accurate position acquisition

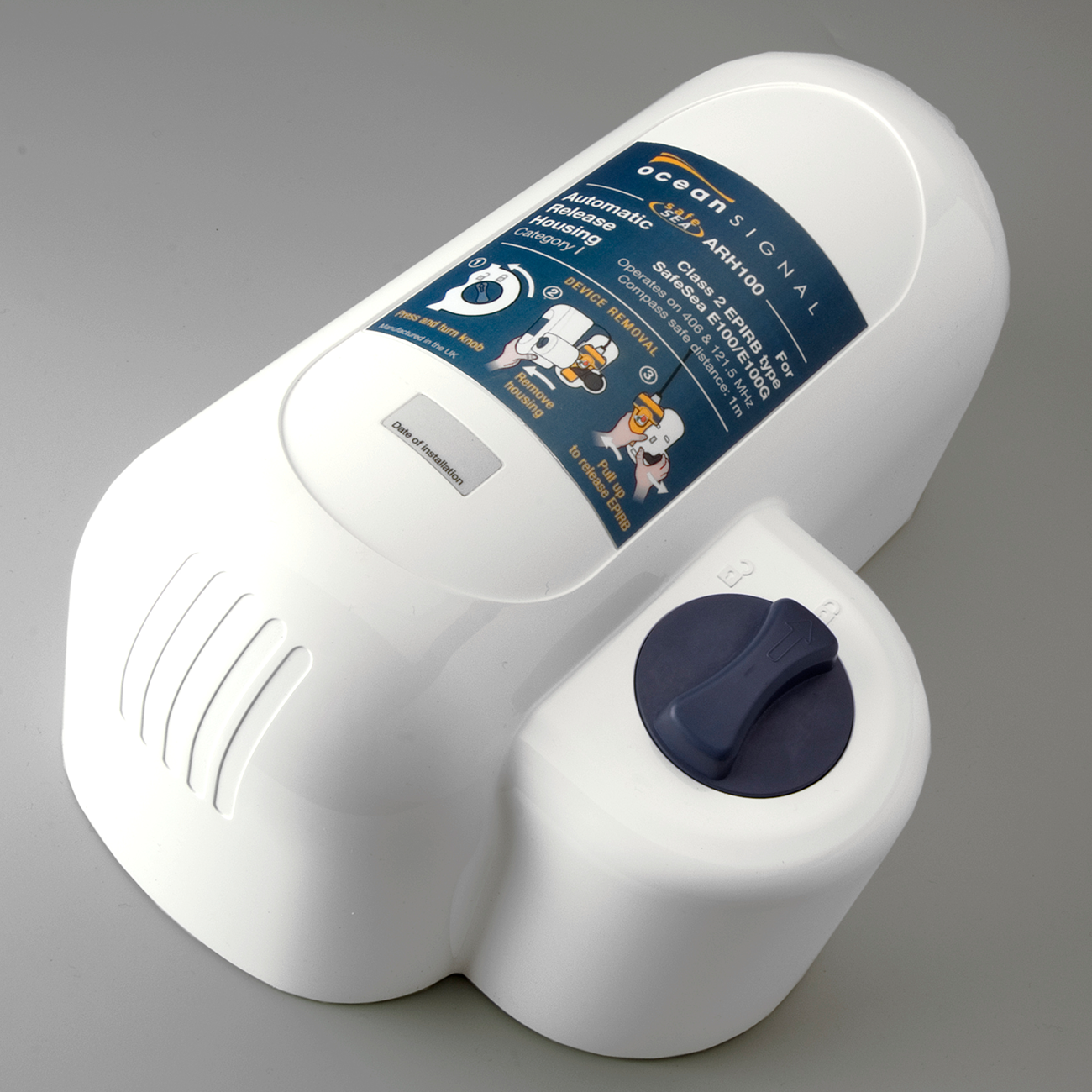

  • Manual bracket, manual release housing, and float free housing options
  • Extreme battery life even at low temperatures
    • In excess of 96 hours of operation
  • User-replaceable batteries with five-year replacement interval
  • Intuitive operating controls protected from accidental activation
  • Meets or exceeds all International standards
  • Class 2 EPIRB (-20°C – +55°C) for general use
  • Non-hazardous battery





This product is currently out of stock and unavailable.

SKU: 700S-00766 Tags: , , , , , , , , , ,

PRODUCT DESCRIPTION

SafeSea EPIRBs operate in the 406MHz satellite band monitored by Cospas-Sarsat, the international satellite operator, ensuring a signal can be located wherever it is activated around the globe.

SafeSea EPIRBs are also fitted with a 121.5MHz homing beacon and a high brightness LED strobe light for fast on-scene location.

The SafeSea E100G EPIRB benefits from a dedicated built-in GPS which sends a highly accurate position, greatly reducing search time.

With the SafeSea EPIRB battery operating life being the highest in the industry an Ocean Signal EPIRB keeps rescue services updated with your location for longer.

Additional information

Weight 0.00 lbs
Product

406MHz Satellite Transmitter

Frequency                                                         406.037MHz

Tolerance                                                           ±1kHz

Stability                                                              2ppb/100ms

Output Power                                                    5watts (nominal)

Modulation Phase                                              ±1.1radians (peak)

Emission Designator                                         16K0G1D

Encoding                                                            Bi-phase L

Data Rate                                                           400bps

Duration                                                              520ms

121.5MHz Homing Beacon

Frequency                                                           121.5MHz

Stability                                                                ±50ppm

Output Power                                                       25-100mW PERP

Modulation                                                           Swept Tone AM

Emission Designator                                            3K20A3X

Modulation Depth                                                 85-100%

Sweep Range                                                      400Hz – 1300Hz

Duty Cycle                                                           35-55%

Low Duty Cycle Strobe Light

Light Type                                                             Dual high-intensity LEDs

Light Colour                                                          White

Output Power                                                        >0.75candela

Flash Rate                                                             20-30 flashes per minute

GPS Receiver (E100G only)

Sensitivity Cold Start                                              -146dBm

Sensitivity Re-acquisition                                       -162dBm

Satellites channels tracked                                    50

GPS Antenna                                                         Microstrip patch

Battery Type Lithium Primary

Chemistry                                                                Manganese Dioxide (LiMnO2)

Operational Life (E100G Class 2 with LB2E)          Typically 96hours

Replacement Interval                                              5years

Environmental

Operating Temperature Range                              -20°C to +55°C

Storage Temperature Range                                 -30°C to +70°C

Automatic release depth                                        4 meters (max)

Waterproof                                                             >10metres at +20°C

Drop into water                                                      20metres

Dimensions

Height (body)                                                         212mm

Body Diameter (max)                                            106mm (113mm)

Standards and Approvals

Cospas-Sarsat                                                      T.001 / T.007

IMO regulations                                                    A.662(16); A.694(17); A.810(19)1; A.814(19)

International Standards Radio                              IEC61097-2

International Standards EMC                               IEC60945

European approval GMDSS                                Marine Equipment Directive A.1/5.6

USA Standards RTCM                                         SC110

USA Standards FCC                                            CFR47 part 80.1101

Service & Warranty

All servicing or repairs of this EPIRB must be carried out by an approved service agent. Please retain the original packaging for your EPIRB. If the EPIRB has to be returned, for any reason, the original packaging should be used.

The battery pack used with this EPIRB is classed as non-hazardous under IATA Hazardous Transport Regulation.

Batteries should be shipped as category 3090, packing instruction 968: part 2.

EPIRBs with batteries should be shipped as category 3091, packing instruction 969: part 2. (The battery should be removed from the EPIRB before packing, but can be in the same box.)

Your SafeSea E100/E100G EPIRB is warranted against manufacturing defects in materials and workmanship for a period of two years from the date of purchase. Ocean Signal Ltd will, at its discretion, repair or replace a faulty product free of charge, including return carriage costs to the owner.

For further assistance, please contact our Technical Service Department:

Email: info@oceansignal.com

Accidental damage and misuse or non-approved modifications are not covered by this warranty. This warranty does not affect your statutory rights.

When I register my EPIRB or PLB is the 0 in the 15 digit HEX ID (UIN) the number 0, or the letter O?

The HEX ID consists of the numbers from 0 to 9 and the letters from A to F only. The character 0 is the number zero.
